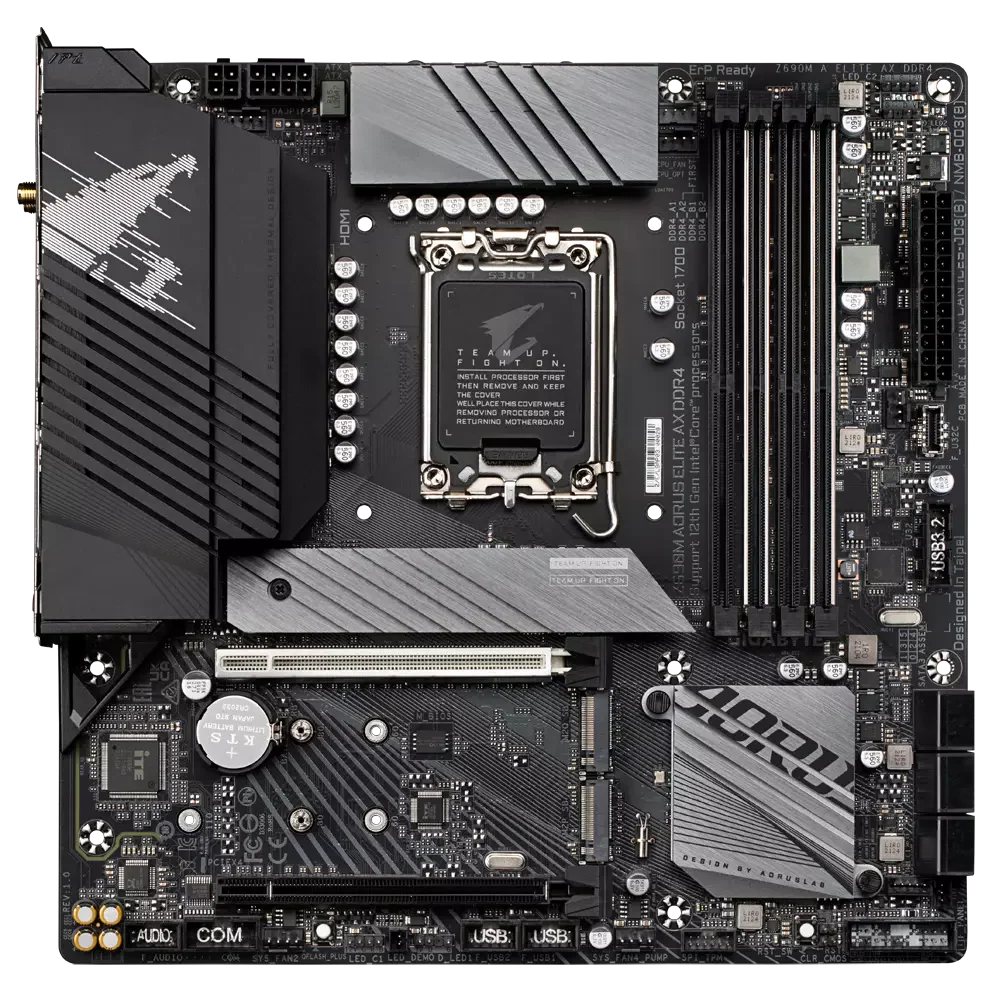

Gigabyte Z690M AORUS ELITE AX DDR4 - LGA1700
- Spesifikasjoner
- Produktinfo
-
Generelt Garanti (måneder) 18 Tilstand Brukt Status Testet Produktnummer Z690M A ELITE AX DDR4 Produkttype Hovedkort Brikkesett type Intel Z690 Prosessorsokkel LGA 1700 Kompatible prosessorer Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 EAN 4719331827908 Støttet RAM Maks størrelse 128 GB Teknologi DDR4-SDRAM Bussklokke 2133,2400,2666,2800,2933,3000,3200,3300,3333,3400,3466,3600,3666,3733,3800,3866,4000,4133,4300,4400,4500,4600,4700,4800,4933,5000,5133,5333 MHz Støttet RAM-integritetskontroll Ikke-ECC Registrert eller bufret Ikke-bufret Egenskaper Grafikk Maks allokert RAM-størrelse Lyd Type Audio Codec Tilpassede standarder LAN Nettverkskontroller Nettverksgrensesnitt Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
WIFI Module
WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 5.2
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
* Actual data rate may vary depending on environment and equipment.
Ekspansjon / Tilkoplinger Utvidelsesspor 1 x PCI Express x16 slot, running at x16 (PCIEX16)
(The PCIEX16 slot conforms to PCI Express 5.0 standard.)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
(The PCIEX4 slot conforms to PCI Express 3.0 standard.)Lagergrensesnitt CPU:
1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
Intel® Optane™ Memory Ready

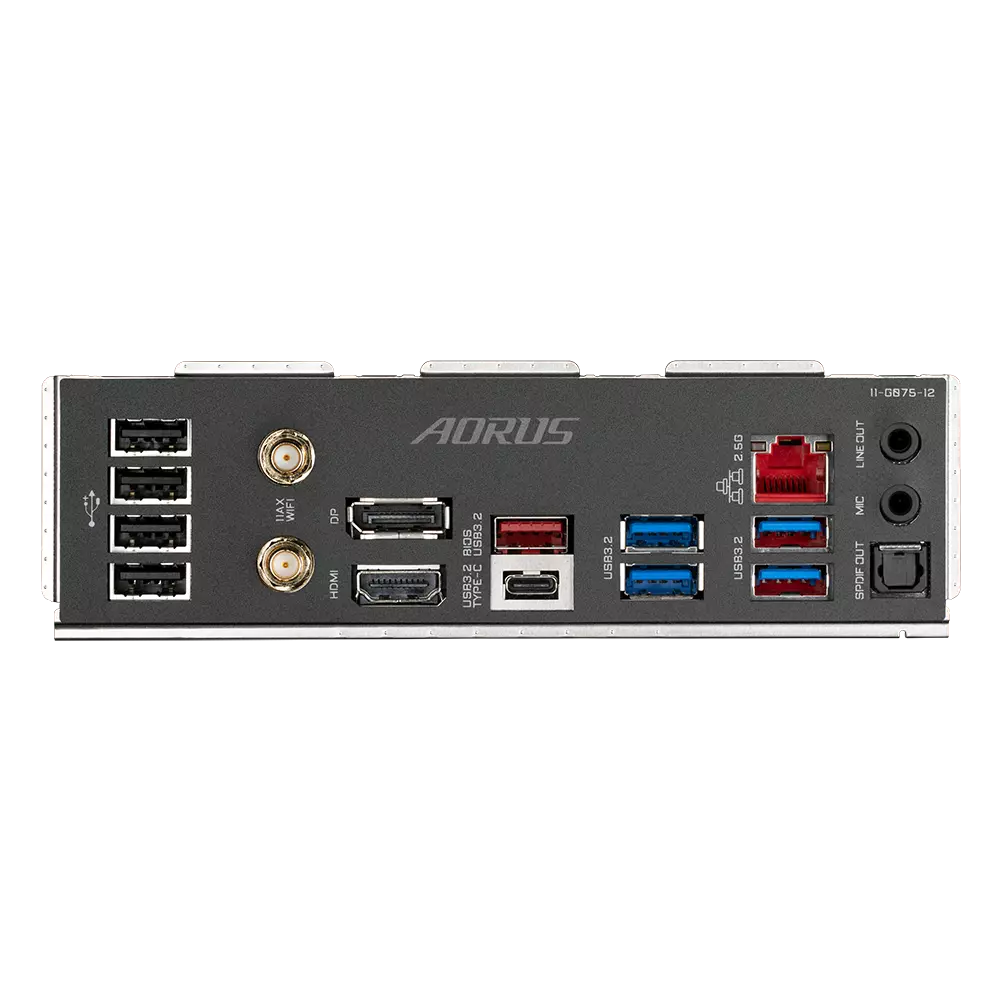

* System acceleration with Intel® Optane™ Memory can only be enabled on the M.2 connectors supported by the Chipset.RAID-funksjoner Grensesnitt 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 2 Type-A port (red)
4 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
2 x SMA antenna connectors (2T2R)
1 x HDMI port
1 x DisplayPort
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacksInterne overflater 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
3 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumperStrømkontakter Egenskaper BIOS Type BIOS-egenskaper Sov/Våkne Maskinvarefunksjoner Diverse Høyde 24.4 cm Bredde 24.4 cm -
