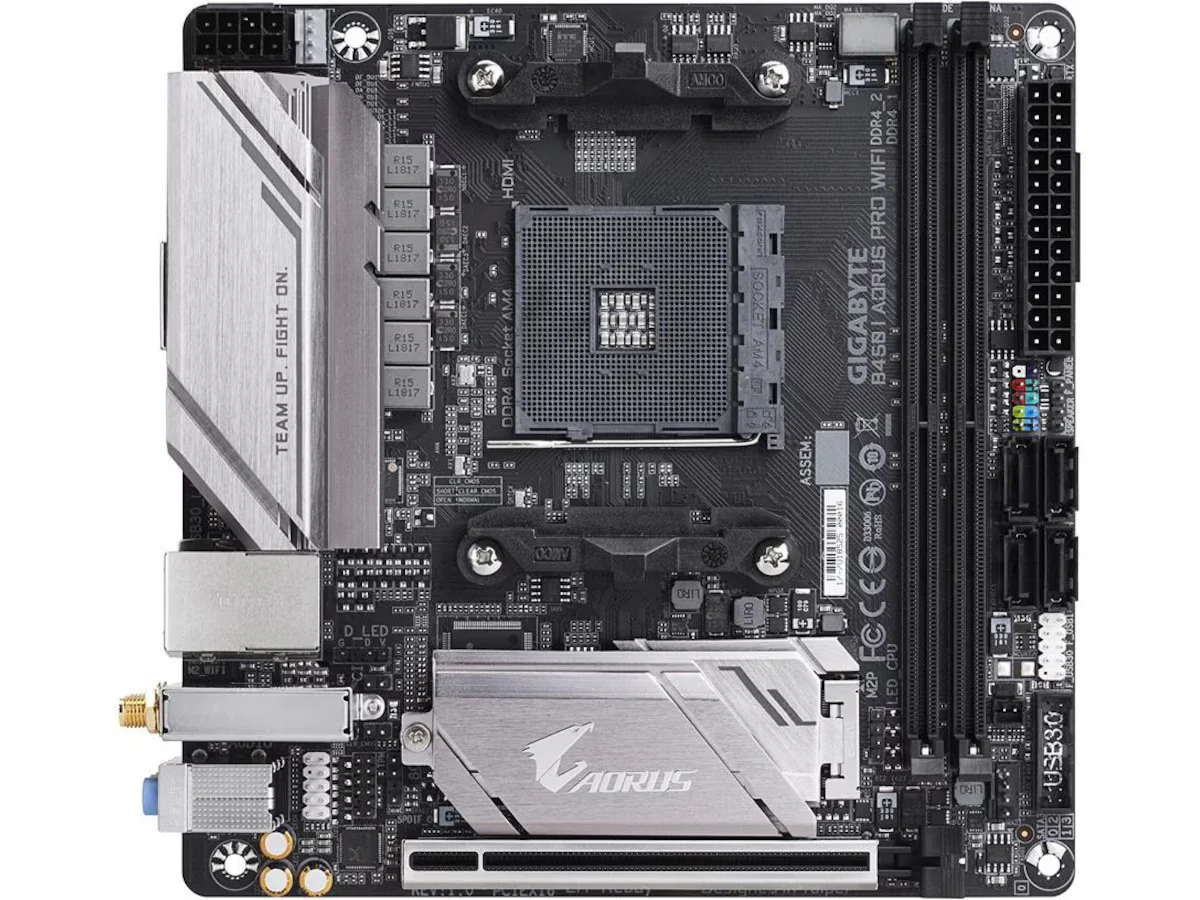

Gigabyte B450 I AORUS PRO WIFI - AM4
- Spesifikasjoner
- Produktinfo
-
Generelt Garanti (måneder) 18 Tilstand Brukt Status Testet Produktnummer B450 I AORUS PRO WIFI Produkttype Hovedkort - mini-ITX Brikkesett type AMD B450 Prosessorsokkel Socket AM4 Kompatible prosessorer Støtter 1.- og 2.-generasjons Ryzen / Ryzen med Radeon Vega Graphics EAN 4719331803988 Støttet RAM Maks størrelse 64 GB Teknologi DDR4 SDRAM Bussklokke 3200 MHz (O.C.), 2133 MHz, 2667 MHz, 2933 MHz, 2400 MHz Støttet RAM-integritetskontroll Ikke-ECC Registrert eller bufret Ikke-bufret Egenskaper 8-pin ATX12V-kontakt, 24-pin hovedstrømforsyningskontakt Grafikk Maks allokert RAM-størrelse Lyd Type Audio Codec Tilpassede standarder LAN Nettverkskontroller Nettverksgrensesnitt Ekspansjon / Tilkoplinger Utvidelsesspor 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* Actual support may vary by CPU.
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
* The PCIEX4 slot shares bandwidth with the PCIEX1_1 and PCIEX1_2 slots. The PCIEX4 slot operates at up to x2 mode when the PCIEX1_1/PCIEX1_2 slot is populated. The PCIEX4 slot operates at up to x4 mode when both of the PCIEX1_1 and PCIEX1_2 slots are empty.
1 x PCI Express x16 slot, running at x1 (PCIEX1_2)
1 x PCI Express x1 slot (PCIEX1_1)
(The PCIEX4 and PCIEX1 slots conform to PCI Express 2.0 standard.)Lagergrensesnitt 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SOCKET)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 3.0 x2 SSD support)(M2B_SOCKET)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10
* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.RAID-funksjoner Grensesnitt 1 x HDMI port
1 x DVI-D port
4 x USB 3.1 Gen 1 ports
1 x USB Type-C™ port, with USB 3.1 Gen 2 support
1 x USB 3.1 Gen 2 Type-A port (red)
1 x RJ-45 port
1 x optical S/PDIF Out connector
5 x audio jacksInterne overflater 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
2 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x CPU fan header
1 x water cooling CPU fan header
2 x system fan headers
1 x system fan/water cooling pump header
1 x CPU cooler LED strip/RGB LED strip header
2 x digital LED strip headers
2 x digital LED strip power select jumpers
1 x RGB (RGBW) LED strip header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only)
1 x Clear CMOS jumperStrømkontakter Egenskaper BIOS Type AMI BIOS-egenskaper DMI 2.7-støtte, SMBIOS 2.7-støtte, UEFI BIOS, WfM 2.0 støttet, ACPI 5.0-støtte Sov/Våkne Maskinvarefunksjoner Støtte for RGBW LED-striper, 4+2 Phase Power Design, AMD StoreMI technology, CEC 2019 Ready, AutoGreen, RGB FUSION, Q-Flash, Ultra Durable PCIe Armor, On/Off Charge, GIGABYTE Double Locking Bracket, M.2 Thermal Guard, Solid Pin Power Connectors Diverse Bredde 17 cm Dybde 17 cm -
Informasjon om produktet
