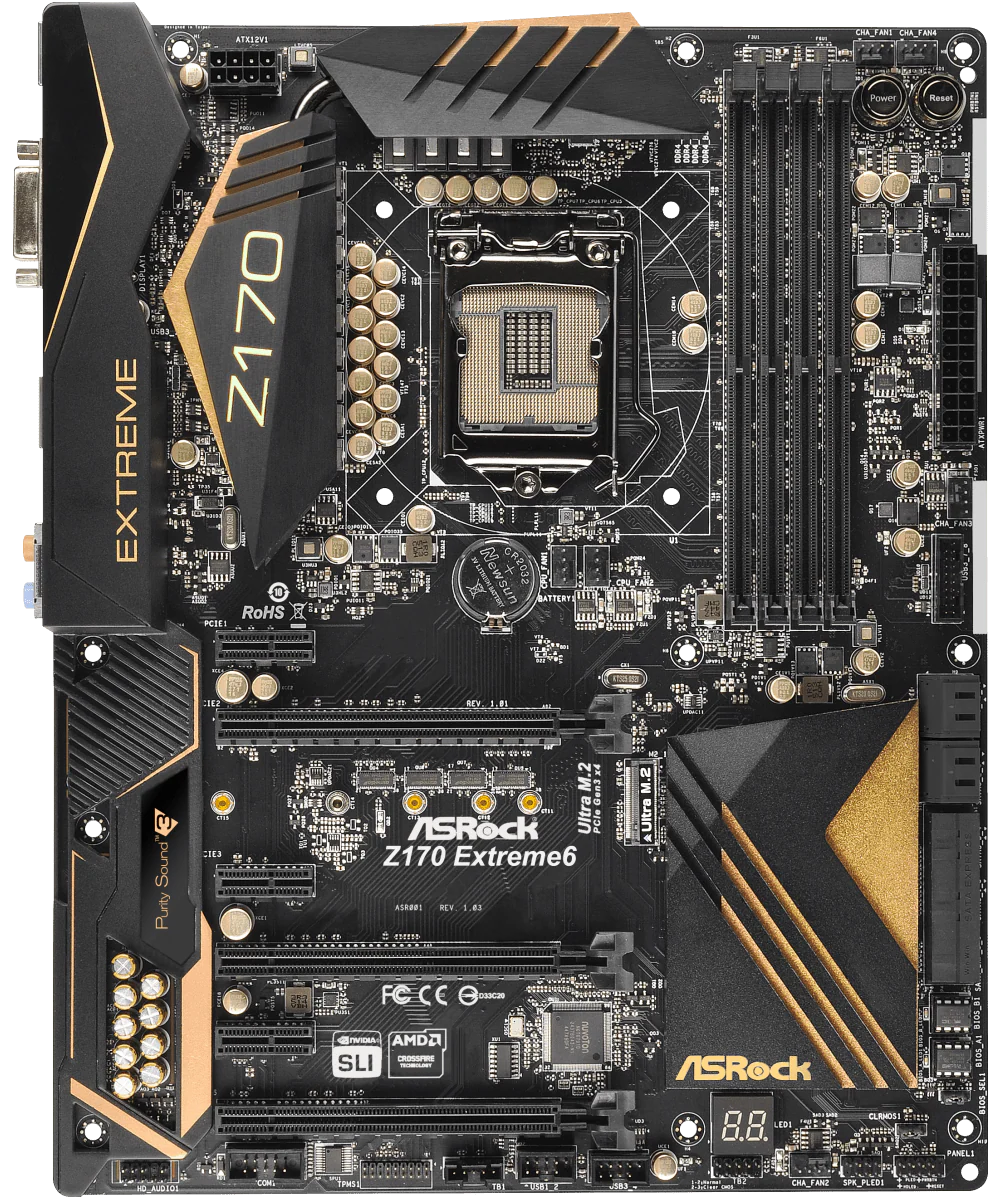

AsRock Z170 Extreme6 - LGA1151-1

Product image 1
Product image 2

AsRock Z170 Extreme6 - LGA1151-1

AsRock Z170 Extreme6 - LGA1151-1



  • Spesifikasjoner
  • Produktinfo
  • Generelt
    Garanti (måneder) 18
    Tilstand Brukt
    Status Testet
    Produktnummer
    Produkttype Hovedkort
    Brikkesett type Intel Z170
    Prosessorsokkel LGA1151-1
    Kompatible prosessorer
    EAN
    Støttet RAM
    Maks størrelse 64GB
    Teknologi
    Bussklokke DDR4 3866+*(*OC)/ 3600*/ 3200*/ 2933*/ 2800*/ 2400*/ 2133
    Støttet RAM-integritetskontroll Ikke-ECC
    Registrert eller bufret Ikke-bufret
    Egenskaper
    Grafikk
    Maks allokert RAM-størrelse
    Lyd
    Type
    Audio Codec
    Tilpassede standarder
    LAN
    Nettverkskontroller
    Nettverksgrensesnitt
    Ekspansjon / Tilkoplinger
    Utvidelsesspor
    Lagergrensesnitt - 6 x SATA3 6.0 Gb/s Connectors by Intel® Z170, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 14 and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug
    - 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug
    - 2 x SATA Express 10 Gb/s Connectors*
    - 1 x Ultra M.2 Socket, supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**
    RAID-funksjoner

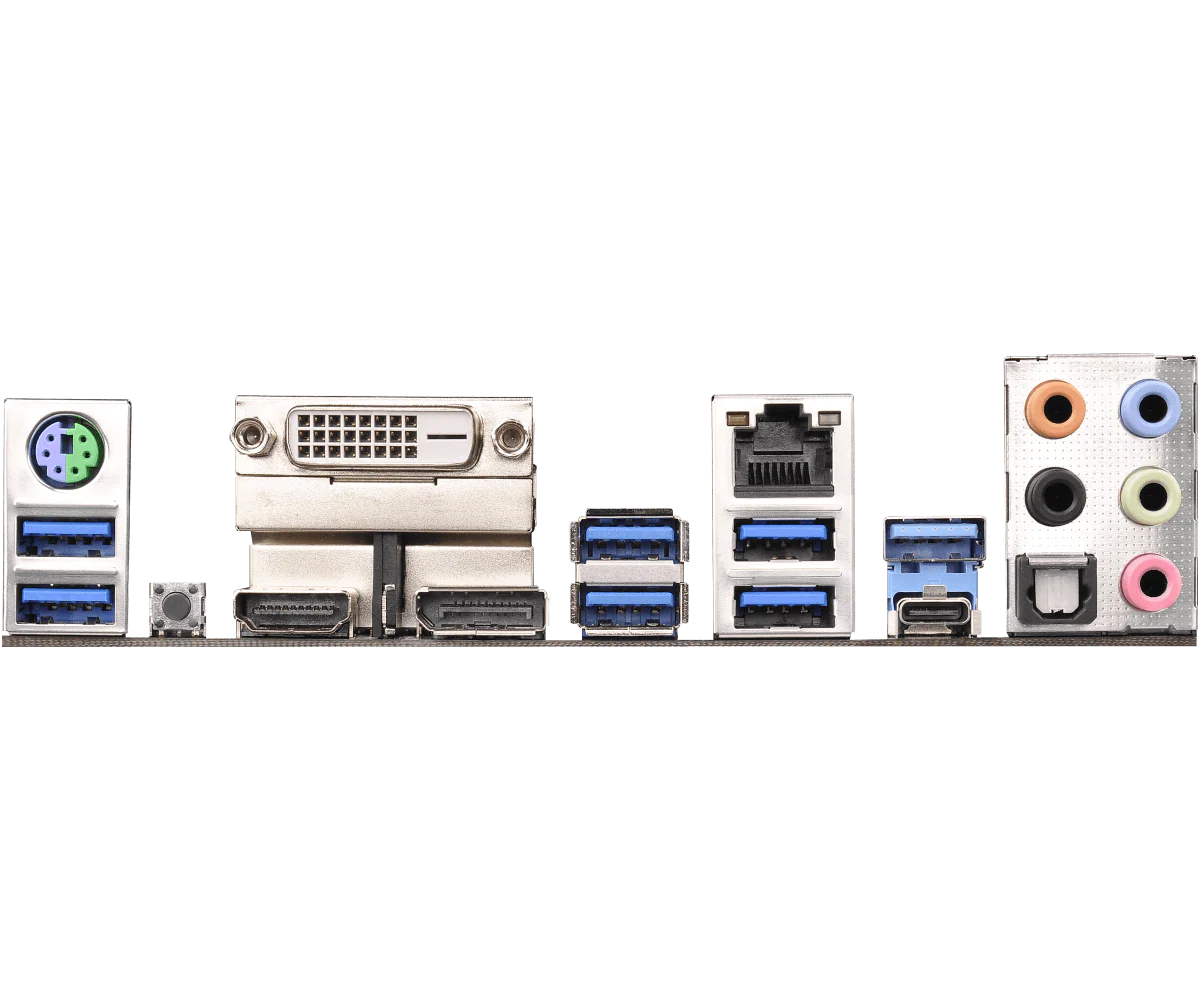

    Grensesnitt - 1 x PS/2 Mouse/Keyboard Port
    - 1 x DVI-D Port
    - 1 x HDMI Port
    - 1 x DisplayPort 1.2
    - 1 x Optical SPDIF Out Port
    - 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (ASMedia ASM1142) (Supports ESD Protection (ASRock Full Spike Protection))
    - 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (ASMedia ASM1142) (Supports ESD Protection (ASRock Full Spike Protection))
    - 6 x USB 3.1 Gen1 Ports (Intel® Z170) (Supports ESD Protection (ASRock Full Spike Protection))
    - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
    - 1 x Clear CMOS Switch
    - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
    Interne overflater - 1 x COM Port Header
    - 1 x TPM Header
    - 1 x Power LED and Speaker Header
    - 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)
    - 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)*
    - 1 x 24 pin ATX Power Connector
    - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
    - 1 x Front Panel Audio Connector
    - 1 x Thunderbolt™ AIC Connector
    - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
    - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection))
    - 1 x Dr. Debug with LED
    - 1 x Power Switch with LED
    - 1 x Reset Switch with LED
    Strømkontakter
    Egenskaper
    BIOS Type
    BIOS-egenskaper
    Sov/Våkne
    Maskinvarefunksjoner
    Diverse
    Høyde 30.5 cm
    Bredde 24.4 cm

  • Informasjon om produktet

$96.75
